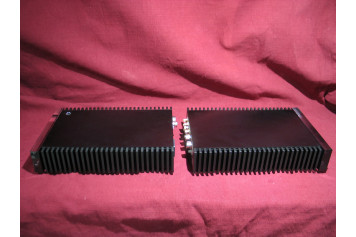

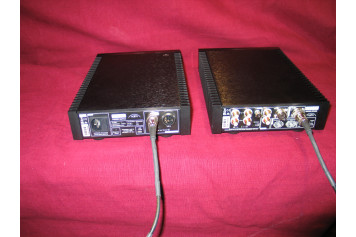

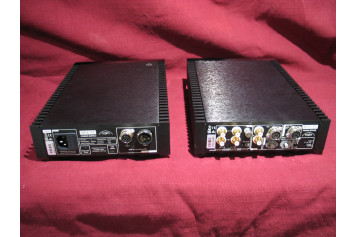

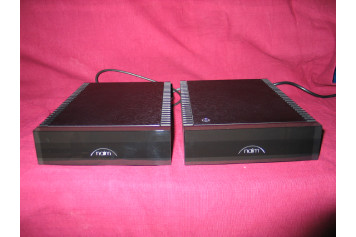

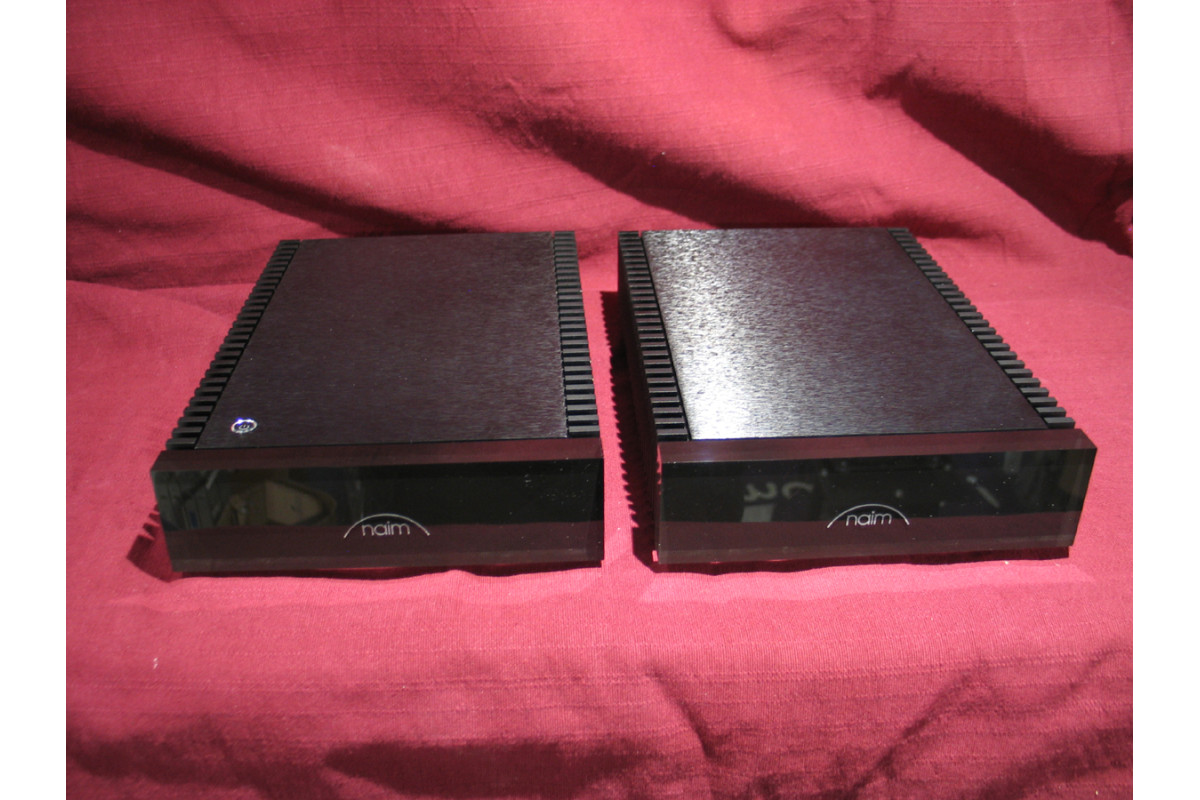

Occasion NAIM NVC-TT + PSU NPX-TT Préampli Phono + Alim

NAIM NVC-TT est un préampli Phono MM et MC, le plus haut de gamme de chez Naim. NPX-TT est l'alimentation séparée du préampli NVC-TT. Ces deux appareils font partie de la gamme 300 qui vise une qualité sonore sans compromis.

NVC TT
MM/MC phono preamplifier

THD+N
MM: <0.005% ref 50mV input
MC (low & high gain): <0.005% ref 1.5mV input

Analogue gain
MM: 42dB
MC (low & high gain): 61dB low gain and 67dB high gain (switchable)

Analogue inputs
MM: -2dB at 20Hz and -3dB at 14Hz (Partial)

Analogue outputs
Max output signal
8 Vrms

Power supply inputs
Type 1

IEC Cut : (Partial) - 2dB at 20Hz and -3dB at 14Hz

Crosstalk - Phono
MM: >75 dB

Headroom
MM: 22dB ref 5mV input
MC: 23dB ref 0,5mV input low; 17dB ref 0,5mV high setting

Input Overload
8.2 V RMS

Loading
MM: 47kΩ and 100pF
MC (low & high gain):
16 selectable resistive values (1 000 Ω, 600 Ω, 430 Ω, 330 Ω, 250 Ω, 215 Ω, 185 Ω,165 Ω,150 Ω, 140 Ω, 125 Ω, 115 Ω, 105 Ω, 100 Ω, 90 Ω, 85 Ω)
16 selectable capacitive values (100 pF, 400 pF, 700 pF, 1000 pF, 1300 pF, 1600 pF, 1900 pF, 2200 pF, 2500 pF, 2700 pF, 3100 pF, 3400 pF, 3700 pF, 4000 pF, 4300 pF, 4600 pF)

Phono gain
MM: 42dB
MC (low & high gain): 61dB low gain and 67dB high gain (switchable)

RIAA Accuracy
MM: +/-0.1dB

Design
Depth : 31.7 cm / 12.5 in
Height : 7 cm / 2.75 in
Width : 21.4 cm / 8.37 in
Weight : 3.4 kg / 7.5 livre

Power Supply Options
NPX TT, NSC 222 and NAC 332

What's in the box
Power supply


NPX TT Power Supply
Power Supply (for NVC TT)

USB ports
Micro USB (update only)

Updates
1 x USB socket (for update)

Power consumption (quiescent)
< 0.5W

Design
Depth : 33 cm / 13 in
Height : 7 cm / 2.75 in
Width : 21.4 cm / 8.37 in

Weight
5.6 kg / 12.35 livre

Power Supply Options
NVC TT

What's in the box
Power-Line Lite
