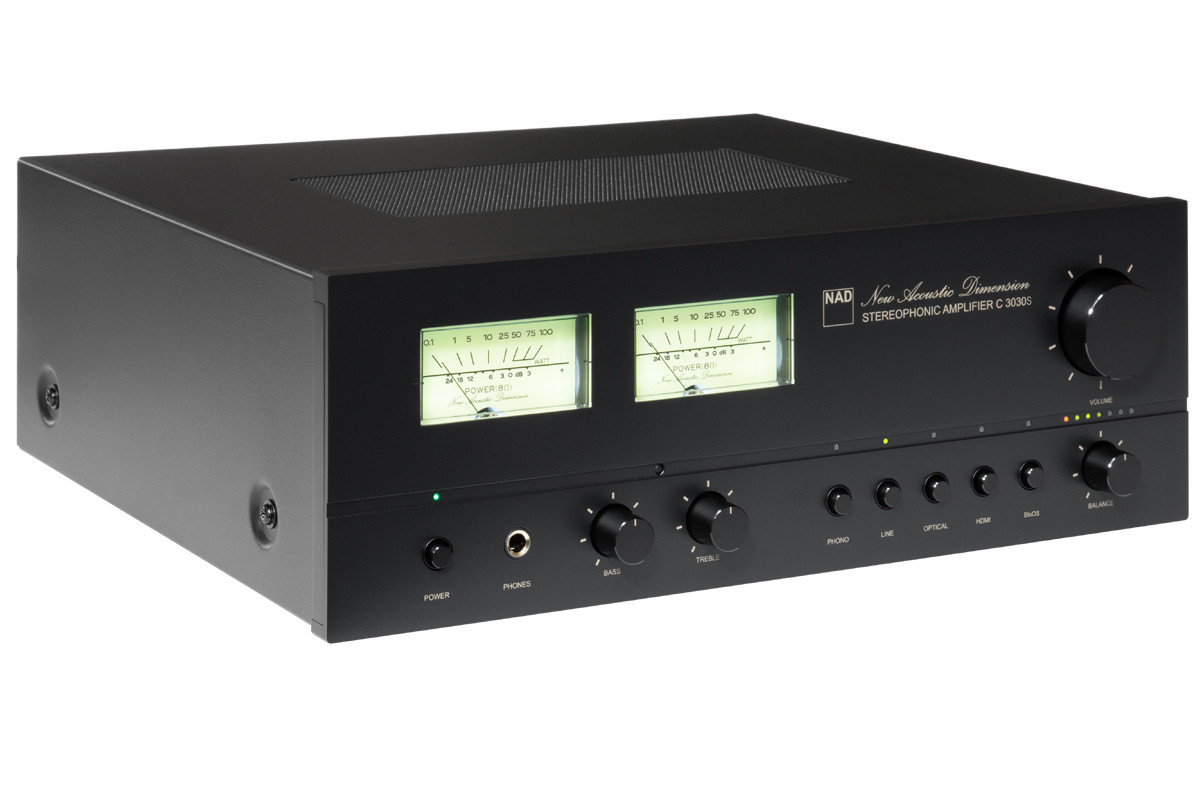

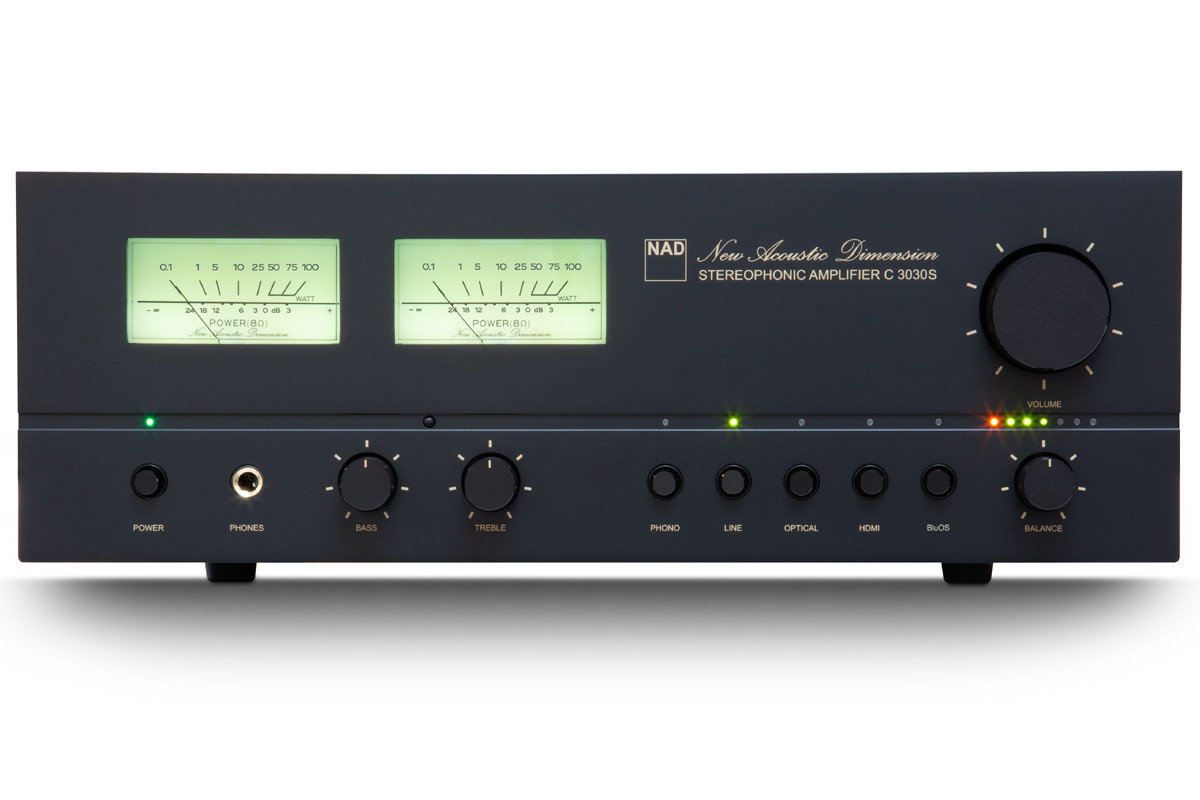

NAD C3030S Ampli Connecté (en pré-commande)

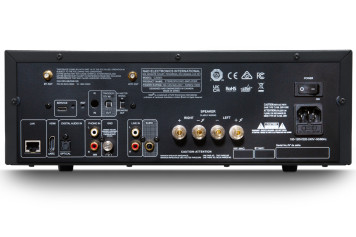

NAD C3030S est un petit ampli connecté de 355 mm de large. Il est la version connectée du C3030 sorti un peu avant lui. On retrouve dans le C3030S le look Vintage irrésistible qui cache en réalité un ampli très complet et très moderne. Par exemple, la connectique comporte une entrée Phono MM, une entrée Ligne, une entrée numérique optique et une HDMI. Une sortie Subwoofer est présente pour l'utilisation d'un caisson de grave.

La connexion au réseau local peut se faire en mode câblé (par RJ45) ou en Wifi. Le C3030S est également Bluetooth. Son appartenance à l'écosystème BlueOS lui permet de diffuser de multiples plateformes de streaming, des Web-radios par milliers et le son d'un dispositif Airplay, smartphone, ordinateur ou tablette.

Caractéristiques constructeur :

LINE INPUT, PRE-OUT (ANALOG BYPASS ON)
THD (20 Hz – 20 kHz)
<0.005 % at 4V out

Signal-to-Noise Ratio
>90 dB (IHF, A-weighted, 500 mV out, unity gain)

Input impedance (R and C)
28 kohms + 360 pF

Maximum input signal
>5.7 Vrms (0.1 % THD)

Output impedance
345 ohms

Input sensitivity
100 mV (500 mV out, Volume maximum)

Frequency response
20 Hz – 20 kHz (±0.3 dB)

Maximum voltage output
>5 V (0.1 % THD)

LINE IN, HEADPHONE OUT
THD (20 Hz – 20 kHz)
<0.005 % at 1V out

Signal-to-Noise Ratio
>90 dB (32 ohms load, A-weighted, 1V out, unity gain)

Frequency response
20 Hz – 20 kHz (±0.3 dB)

Channel separation
>60 dB at 1 kHz

Output impedance
22 ohms

GENERAL SPECIFICATIONS
LINE IN, SPEAKER OUT
Continuous output power into 8 ohms and 4 ohms
50 W (20 Hz – 20 kHz at rated THD, both channels driven)

THD (20 Hz – 20 kHz)
<0.03 % (250 mW to 50 W, 8 ohms and 4 ohms)

Signal-to-Noise Ratio
>90 dB (A-weighted, 500 mV input, 1 W out in 8 ohms)

Clipping power
>70 W (1 kHz 0.1 % THD, 4 ohms)
>55 W (1 kHz 0.1 % THD, 8 ohms)

IHF dynamic power
8 ohms: 120 W
4 ohms: 250 W
2 ohms: 390 W

Peak output current
>16 A (1 ohm, 1 ms)

Damping factor
>52 (20 Hz to 6.5 kHz, 50 W, 8 ohms)

Frequency response
20 Hz – 20 kHz (±0.3 dB)

Channel separation
>75 dB (1 kHz)
>70 dB (10 kHz)

Input sensitivity (50 W in 8 ohms)
750 mV

Frequency band
2.402 G – 2.480 G

Maximum transmit power
7 dBm ± 2 dBm

Power consumption, standby mode*
0.5 W

LINE IN, PHONO INPUT
THD (20 Hz – 20 kHz)
<0.05 % at 50 W out

Signal-to-Noise Ratio
>82 dB (10 mV in, A-weighted, 1 W out)

Input impedance (R and C)
46 kohms / 100 pF

Input sensitivity
1.6 mV (20 Hz – 50 W out, Volume maximum)

Frequency response
20 Hz – 20 kHz (±0.3 dB) >16 A (1 ohm, 1 ms)
Note: The RIAA response is consistent with a pre-emphasis that is rolled off at 50 kHz by a second order filter, such as used in Neumann cutting lathes.

Maximum input signal at 1 kHz
>15 mVrms (0.1 % THD)

DIMENSION AND WEIGHT
Gross dimensions (W x H x D) **
356 x 129 x 329 mm

Net weight
5.8 kg

Shipping weight
7.2 kg

BluOS SPECIFICATIONS BluOS AUDIO
Supported audio file format
MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS

Supported high-resolution audio file format
FLAC, MQA, WAV, AIFF

Sampling rate
up to 192 kHz

Bit depths
16 – 24

BluOS SUPPORTED SERVICES***
Music Services
Amazon Music
Bugs
CustomChannels (Commercial music service for businesses)
Deezer
IDAGIO
KKBOX
Napster
Neil Young Archives
nugs.net
Amazon Music
Bugs
CustomChannels (Commercial music service for businesses)
Deezer
IDAGIO
KKBOX
Napster
Neil Young Archives
nugs.net
Pandora [Android/iOS only, Desktop version support coming soon]
Presto Music [Android/iOS only, Desktop version support coming soon]
Qobuz
QPlay (QQ音乐)
Qsic (Commercial music service for businesses)
Spotify
SOUNDMACHINE (Commercial music service for businesses)
TIDAL
Tunify (Commercial music service for businesses)

Internet Radio
CALM Radio
SiriusXM (US) / SiriusXM (Canada) Note: Commercial/Business users should enter SiriusXM (Music for Business) credentials
iHeartRadio
LiveOne (Formerly LiveXLive/Slacker Radio)
Audacy (Formerly Radio.com)
Radio Paradise
TuneIn

Integration partners
Control4, Crestron, ELAN, Lutron, Push, Roon, RTI, URC

Voice Control
Skills and support for Amazon Alexa and Apple’s Siri with corresponding enabled devices and App

BluOS CONNECTIVITY
Network connectivity
Gigabit Ethernet RJ45

Wi-Fi
5

Supported network file share protocol
Server Message Block (SMB)

Bluetooth quality
aptX HD 5.0

Bluetooth Connectivity
Receive Mode (Playback from BT devices)
